I recently finished my latest radio. It's a one-tube regenerative using an 1t4. I built it into a cigar box I picked up on Ebay. This is the first time I've put pics and words together on the board, so I hope everything works out ok.

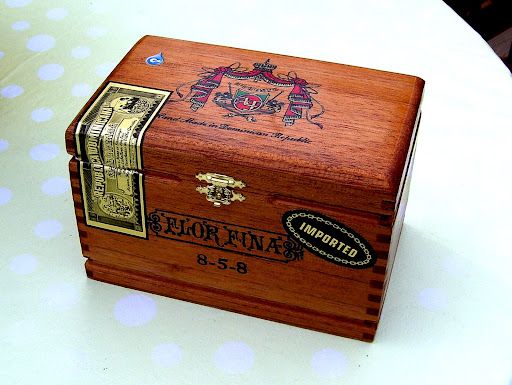

Here is the box I used. I picked it for its dimensions: Not too big, not too small. Also, it looks cool as heck.

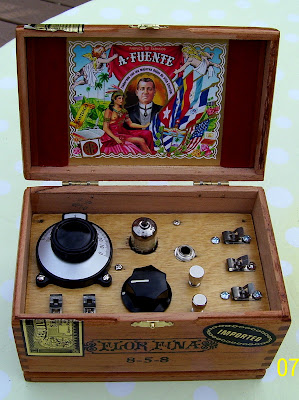

The picture inside the lid was a selling point. I've seen a couple of other radios built into this box.

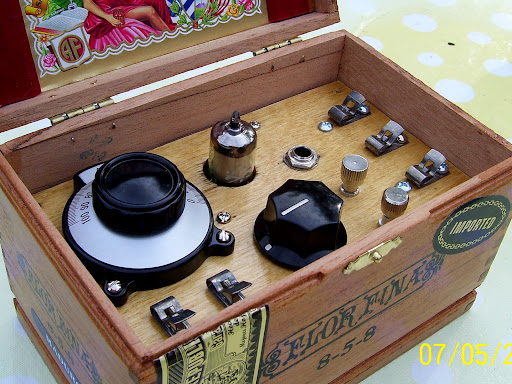

A closer look at the radio. The only thing left to do is put some labels on. I can't rely on my memory to not mix up the battery connections. The panel is plywood I got from Michael's. I had trouble with it splintering, but in the end it gave an antique look. I stained the panel with stain from Lowe's, and coated it with polyurethane. I haven't decided if the knobs are too modern looking for the set.

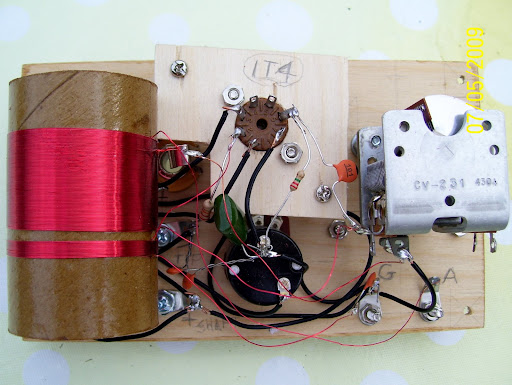

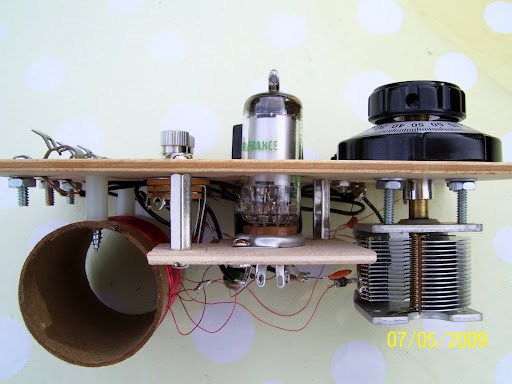

This shows how I connected the vernier dial to the tuning capacitor and how I suspended the tube and socket below the panel. It also shows more exposed magnet wire than I'm comfortable with. I worry about chafing and short circuits. If I don't take it out of the box too often I should be okay.


I got the plans from a Modern Radio Labs book. There was no coil data given, so I had to guess on the tickler and antenna coil size. Also, the values for the resistors and capacitors didn't match anything I had on hand, so I got as close as I could with what I had. I misread one of the capacitor values in the book and ended up doubling the value. It didn't seem to make any difference.

The radio is a very good performer. It's never too loud on the locals and it doesn't have any hand-capacitance induce howl when I'm on the edge of oscillation. It is VERY sensitive. I live in Tacoma and I can reliably pick up two stations in Los Angeles, about 950 miles away. Last night I nailed KFMB in San Diego. At 1,028 miles that's my first station over 1,000 miles on a radio I made myself, except for one that uses a MK484 IC chip. I'm going to be using this radio in the contest this month.
